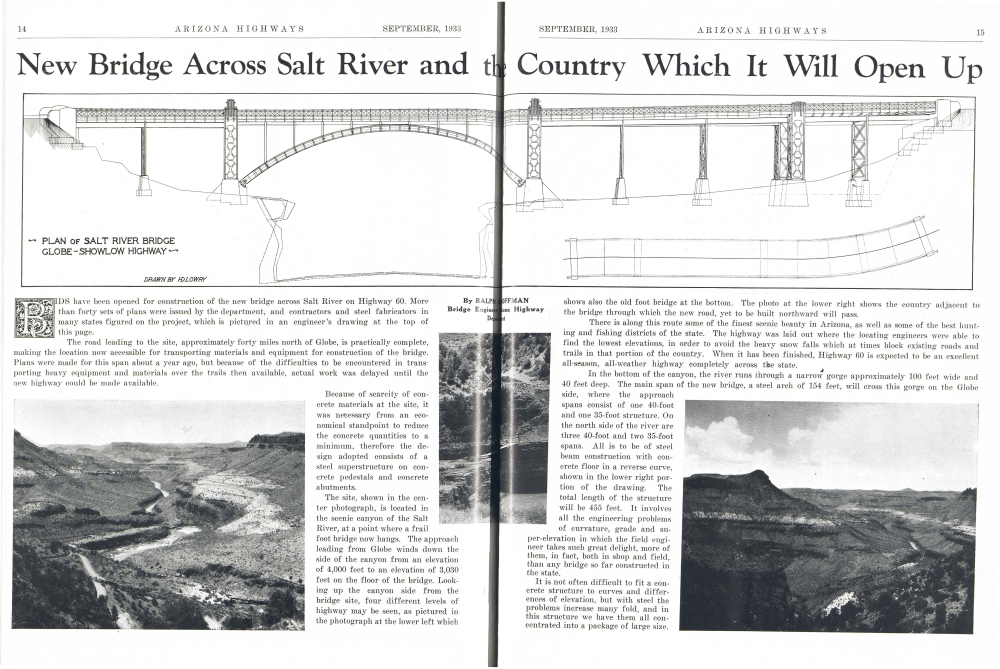

New Bridge Across Salt River

BY: Ralph Hoffman

New Bridge Across Salt River and th

IDS have been opened for construction of the new bridge across Salt River on Highway 60. More than forty sets of plans were issued by the department, and contractors and steel fabricators in many states figured on the project, which is pictured in an engineer's drawing at the top of this page. The road leading to the site, approximately forty miles north of Globe, is practically complete, making the location now accessible for transporting materials and equipment for construction of the bridge. Plans were made for this span about a year ago, but because of the difficulties to be encountered in transporting heavy equipment and materials over the trails then available, actual work was delayed until the new highway could be made available.

Because of scarcity of concrete materials at the site, it was necessary from an economical standpoint to reduce the concrete quantities to a minimum, therefore the design adopted consists of a steel superstructure on concrete pedestals and concrete abutments.

The site, shown in the center photograph, is located in the scenic canyon of the Salt River, at a point where a frail foot bridge now hangs. The approach leading from Globe winds down the side of the canyon from an elevation of 4,000 feet to an elevation of 3,030 feet on the floor of the bridge. Looking up the canyon side from the bridge site, four different levels of highway may be seen, as pictured in the photograph at the lower left which shows also the old foot bridge at the bottom. The photo at the lower right shows the country adjacent to the bridge through which the new road, yet to be built northward will pass.

SEPTEMBER, 1933 ARIZONA HIGHWAYS 15 Country Which It Will Open Up

There is along this route some of the finest scenic beauty in Arizona, as well as some of the best hunting and fishing districts of the state. The highway was laid out where the locating engineers were able find the lowest elevations, in order to avoid the heavy snow falls which at times block existing roads and trails in that portion of the country. When it has been finished, Highway 60 is expected to be an excellent all-season, all-weather highway completely across the state.

In the bottom of the canyon, the river runs through a narrow gorge approximately 100 feet wide and 40 feet deep. The main span of the new bridge, a steel arch of 154 feet, will cross this gorge on the Globe side, where the approach spans consist of one 40-foot and one 35-foot structure. On the north side of the river are three 40-foot and two 35-foot spans. All is to be of steel beam construction with concrete floor in a reverse curve, shown in the lower right portion of the drawing. The total length of the structure will be 455 feet. It involves all the engineering problems of curvature, grade and super-elevation in which the field engineer takes such great delight, more of them, in fact, both in shop and field, than any bridge so far constructed in the state.

It is not often difficult to fit a concrete structure to curves and differ-ences of elevation, but with steel the problems increase many fold, and in this structure we have them all con-centrated into a package of large size.

16 ARIZONA HIGHWAYS SEPTEMBER, 1933 COMMISSION NOTES

It was regularly moved by Commissioner Vyne, seconded by Commissioner Mans-field, and carried, that the communication be answered and taken under consideration until such time as a report is received from the Indian Department as to what their final decision will be.

The Secretary read a letter from the State Land Department asking for the privilege of leaving privately owned cars of individuals in the yard of the Highway Department pending the return each evening of State machines, which are stored with the Department. It was regularly moved by Commissioner Mansfield, seconded by Commissioner Vyne and carried, that the Secretary notify the Land Department their request will be granted and the plan will be tried temporarily, until we know how it will work out, however, the Department will not assume responsibility of any thefts, fire or loss of the machines.

The Secretary read a communication from the Board of Supervisors of Yavapai County urging the consideration and action of the Commission for oiling State Highway 79. It was regularly moved by Commissioner Vyne, seconded by Commissioner Mansfield, and carried, that the communication be received and filed.

A communication from W. C. Markham, Executive Secretary of the American Association of State Highway Officials, addressed to Mr. B. F. Thum, Sec retary of the Florence Chamber of Commerce, stating they had not received a request from the Highway Department of Arizona to change U. S. 80 and U. S. 89 to State Highways 84 to 87, was ordered placed on file.

The Secretary read a letter from Grace M. Sparkes of the Yavapai County Chamber of Commerce thanking the Commission for the splendid cooperation extended in sending Motor Patrolmen to Prescott during Frontier Days. The Communication was ordered placed on file.

The Secretary read a communication from Riney B. Salmon concerning an application for a franchise for a ferry, filed by Merle Emery with the Board of Supervisors of Mohave County, together with notice of such application. After discussing the matter, it was regularly moved by Commissioner Vyne, seconded by Commissioner Mansfield, and carried, that no objection to the granting of the permit be raised by the Commission.

The Secretary presented a letter from Mr. L. C. McCullough of the Arizona State Chamber of Commerce urging the Arizona State Highway Commission to take prompt action to bring to a successful completion the Parker Bridge across the Colorado River. State Engineer O'Connell advised the Commission that he had communicated with Mr. Sweetser of the Bureau of Public Roads and requested him to arrange for a representative of the Bureau to meet with the Bridge Engineers of the States of Arizona and California for the purpose of investigating the possibilities for such a structure, and also requested that consideration be given to the inclusion of this project under the Federal Lands Highway funds. The Secretary was instructed to notify Mr. McCullough what has been done. Other communications urging the building of the bridge at Parker were presented and the Secretary was instructed to write interested parties what has been done on the matter.

A resolution was read by the Secretary from the Mohave County Chamber of Commerce urging the State Highway Department to use its influence and exert every official right it may have to the end that any available funds from the $5,000,000 additional highway funds be used to fully complete major projects now under construction. It was regularly moved by Commissioner Mansfield, seconded by Commissioner Vyne, and carried, that the Secretary write the Mohave County Chamber of Commerce and advise them that the $500,000 has been absorbed by the Committee on Public Works and we are to do certain work within incorporated cities.

The Secretary read a communication from the Flagstaff Chamber of Commerce asking for the completion by oiling of Highway 79. Commissioner Vyne was instructed to interview the Flagstaff Chamber of Commerce and explain to them what funds have been made available to the Department by Congress through the National Recovery Industrial Act.

The Secretary read a letter from Mr. H. B. Maddox concerning the new Polygraph or Lie-Detector which is being used extensively in the East. The communication was referred to the State Engineer.

It was regularly moved, seconded, and carried, that the Commission adjourn at 6:25 P. M., August 3, 1933, to meet again at the call of the Chairman.

The Arizona State Highway Commission met in special session in their offices in the Highway Building at 10:00 A. M., August 14, 1933. Those present were Chairman Dowell, Vice-Chairman Vyne, Commissioners Addams, Barth and Mansfield, also, the State Engineer, the Secretary and Attorney J. R. McDougall.

It was regularly moved by Commissioner Addams, seconded by Commissioner Mansfield, and carried, that a resolution be prepared expressing the great loss the Department will suffer by the resignation of Mr. Riney B. Salmon and expressing the appreciation of the Highway Commission for the services rendered them and the Highway De-ment of this company, which has to be certified to by a C.P.A., had not been submitted, and, as the Commission had waived the fifteen-day period for prequalification clause on these projects, Mr. Kelly was advised that if this statement were submitted any time prior to the opening of bids Saturday morning, and was found in order, he would be qualified.

Mr. Kelly stated this would be impossible as he did not have enough time but he understood the Commission had entirely waived the prequalification clause, and that gave him the privilege to bid. Inasmuch as there seemed to be a misunderstanding of the interpretation of the resolution passed by the Commission concerning the prequalification of bidders on these projects, the Department received the bid of the Arizona Sand and Rock Company, Saturday morning, August 12th, but held it unopened awaiting the decision of the Commission regarding the prequalification.

The Secretary read the resolution passed by the Commission at their previous meeting waiving the fifteen-day period for pre-qualification of bidders bidding on the St. Johns-Springerville Highway, F.A.P. No. E-60 and E-68-A, and the decision of the Commission was that they had waived only the fifteenday period for prequalification and not the prequalification itself. Commissioner Addams made a motion that the bid of the Arizona Sand and Rock Company be opened. Attorney McDowell advised the Commission that he had gone into the resolution passed concerning the prequalification of bidders wishing to bid on this project, and it was his opinion the bid of the Arizona Sand and Rock Company was null and void inasmuch as they had not submitted, prior to the time of presenting their bid, the prequalifications required by the Commission. Commissioner Addams withdrew his motion, and Mr. McDougall was requested to give the Commission a written opinion stating this bid is null and void.

On the advice of the Attorney General, it was regularly moved by Commissioner Mansfield, seconded by Commissioner Vyne, and carried, that the bid of the Arizona Sand and Rock Company be returned unopened.
