NAVAJO DAM

NAVAJO DAM BY W. W. BRENNER AND J. D. SEERY Bureau of Reclamation

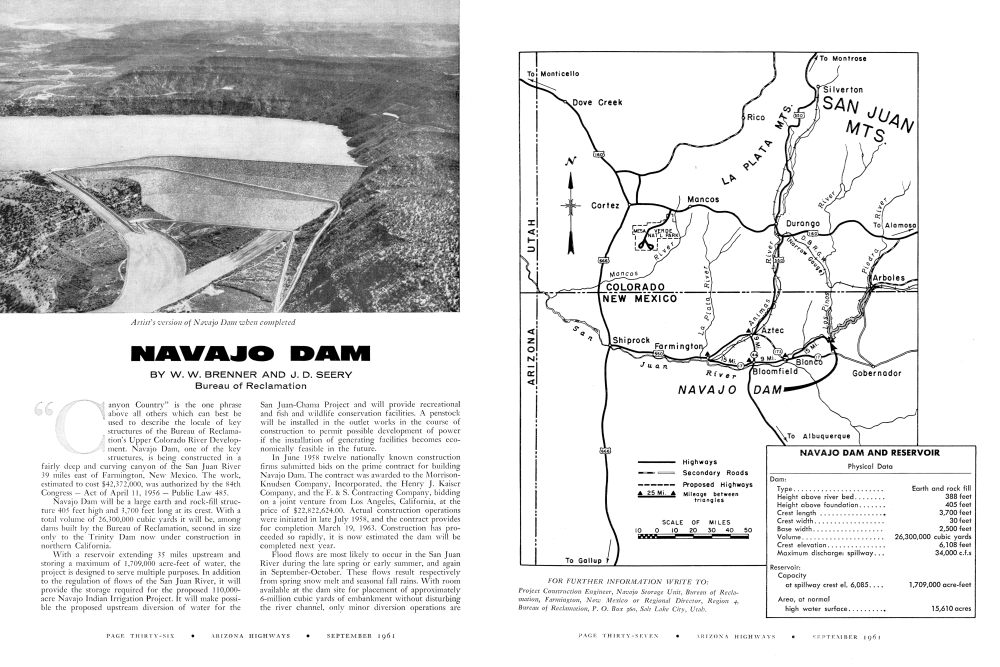

“Canyon Country” is the one phrase above all others which can best be used to describe the locale of key structures of the Bureau of Reclamation's Upper Colorado River Development. Navajo Dam, one of the key structures, is being constructed in a fairly deep and curving canyon of the San Juan River 39 miles east of Farmington, New Mexico. The work, estimated to-cost $42,372,000, was authorized by the 84th Congress Act of April 11, 1956-Public Law 485. Navajo Dam will be a large earth and rock-fill structure 405 feet high and 3,700 feet long at its crest, With a total volume of 26,300,000 cubic yards it will be among dams built by the Bureau of Reclamation, second in size only to the Trinity Dam now under construction in northern California. With a reservoir extending 35 miles upstream and storing a maximum of 1,709,000 acre-feet of water, the project is designed to serve multiple purposes. In addition to the regulation of flows of the San Juan River, it will provide the storage required for the proposed 110,000acre Navajo Indian Irrigation Project. It will make possi ble the proposed upstream diversion of water for the San Juan-Chama Project and will provide recreational and fish and wildlife conservation facilities. A penstock will be installed in, the outlet works in the course of construction to permit possible development of power if the installation of generating facilities becomes eco nomically feasible in the future. In June 1958 twelve nationally known construction firms submitted, bids on the prime contract for building Navajo Dam. The contractor was awarded, to the MorrisonKnudsen Company, Incorporated, the Henry J. Kaiser Company, and the F. & S. Contracting Company, bidding: on a joint venture from Los Angeles, California, at the price of 522,822,624.00. Actual, construction operations were initiated in late July 1958, and the contract provides for completion March 19, 1963. Construction has pro ceeded so rapidly, it is now estimated the dam will be completed next year. Flood flows are most likely to occur in the San Juan River during the late spring or early summer, and again in September-October. These flows result respectively from spring snow melt and seasonal fall rains. With room available at the dam site for placement of approximately 6-million cubic yards of embankment without disturbing the river channel, only minor diversion operations are

NAVAJO DAM AND RESERVOIR

required during the first year of construction. Thereafter, the outlet works tunnels will be utilized for diversion purposes. These tunnels, without gates and gate control apparatus, will be used until the dam embankment reaches sufficient height to permit safe storage of water. Gates will then be installed, first in the auxiliary outlet works' tunnel and then in the main outlet works tunnel, in sequence that will permit the simultaneous accumulation of storage and continuous downstream release of water as was previously mentioned. It is expected that the rate of discharge from Navajo Dam after ultimate development of the Navajo Irrigation Project will be natural flow of river up to 600 cubic feet per second.

The Navajo Dam will create a relatively deep but narrow reservoir extending 35 miles up the San Juan River, 13 miles up the Pine River, and 4 miles up the Piedra River of southern Colorado. When filled, the reservoir will have a maximum depth of 388 feet at the dam and a surface area of 15,610 acres. Storage capacity will be as follows:

In addition,

Principal Quantities Required for the Dam, Spillway and Outlet Works Features

Big equipment rushes completion of Navajo Dam
